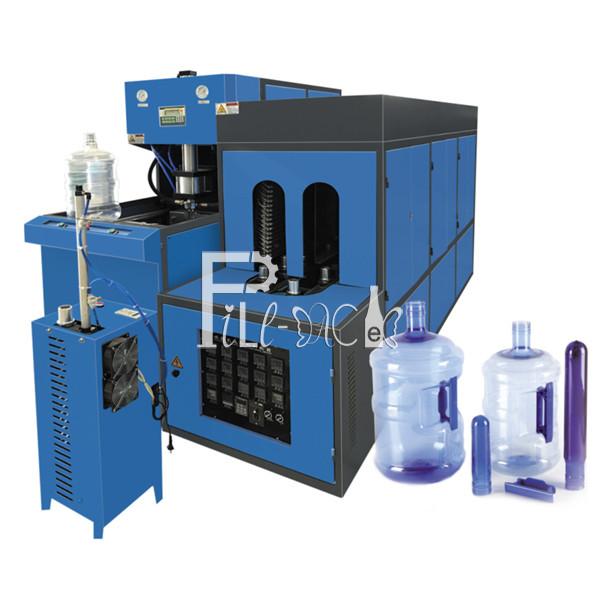

Single Cavity 20L 150BPH Gallon Bottle Blowing Machine

Name: Single Cavity 20L 150BPH Gallon Bottle Blowing Machine
Brand: FillPack
Price: 9600 USD

Single Cavity 20L 150BPH Gallon Bottle Blowing Machine Manufactures

Brand Name : FillPack

Model Number : FP-120

Certification : CE. ISO9001

Place of Origin : China,JiangSu,Zhangjiagang

MOQ : 1

Price : 9600USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 sets/month

Delivery Time : 15-20days after deposit receipt

Packaging Details : Wooden Case Package

Blow Moulding Type : Stretch Blow Moulding

Capacity : 150BPH

Voltage : 220-380-110V/50-60HZ/3phase

Weight : 1600KG

Cavity : Single Cavity

Name : Gallon Bottle Blowing Machine

Dimension : 2300*750*2100 mm

Condition : New

Contact Now

Semi auto 20L / 5 gallon bottle making machine with single cavity

5 gallon bottle making machine Specification:
● Perfect function with economic investment.
● Small size and compact construction with no space waste.
● Easy to operate and maintain ,operation by one person .
● Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
● We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer's requirements.

5 gallon bottle making machine Main Parameter:

Name	Item	Unit	Details
Blowing machine	Dimension	mm	23007502100
	Bottle volume (max)	L	22
	Bottle volume (min)	L	5
	Bottle Neck Diameter (max)	mm	90
	Bottle Neck Diameter (min)	mm	38
	Body Diameter (max)	mm	300
	Body Height( max)	mm	550
	Number of Cavities	mold	1
	Production output	pcs/h	5GALLON:90-150PCS/HOUR
	Clamping force	T	20(200KN)
	Mold thickness	mm	450(max)
	Mold width	mm	430x530
	Space between Tie-bars	mm	430*470
	Diameter of Tie-bars	mm	63
	Scope of Tie-bars	mm	405
	Mold stroke	mm	170
	Stretching stroke (max)	mm	420
	Working pressure	Mpa	0.8-1.0Mpa
	Blowing pressure	Mpa	2.0-3.0Mpa
	Voltage/Power	V/KW	220V/1KW

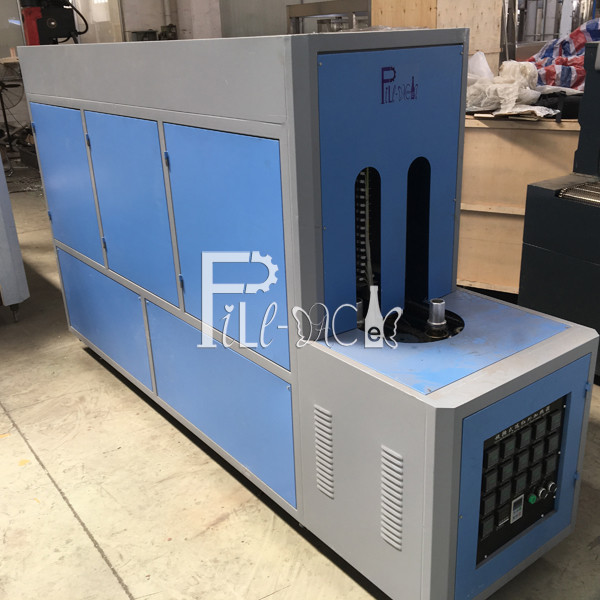

Pre-heater	Dimension	mm	23007502100MM
	Weight	kg	1600
	Voltage/Power	V/KW	380V/28KW
	Lamp	PCS	32
	Working power	Kw	15kw

Single Cavity 20L 150BPH Gallon Bottle Blowing Machine

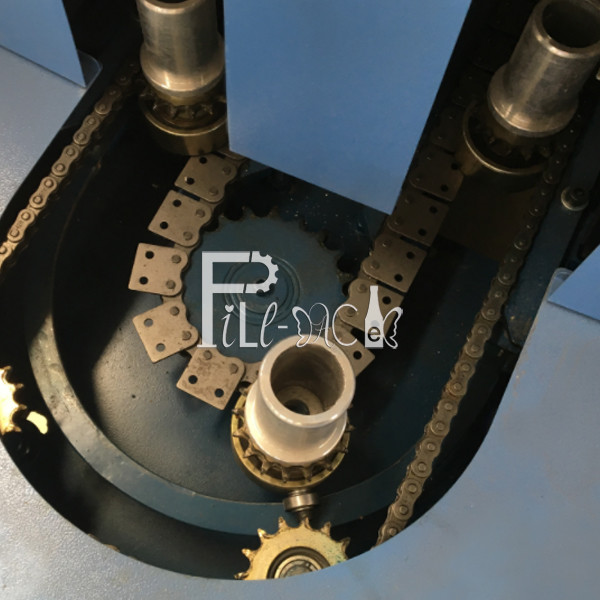

5 gallon bottle making machine Parts

Max. container volume:20L
Mould thickness:260-410mm
Max. container diamter:300mm

Single Cavity 20L 150BPH Gallon Bottle Blowing Machine

Product Tags:

150BPH Gallon Bottle Blowing Machine

150BPH bottle preform making machine
